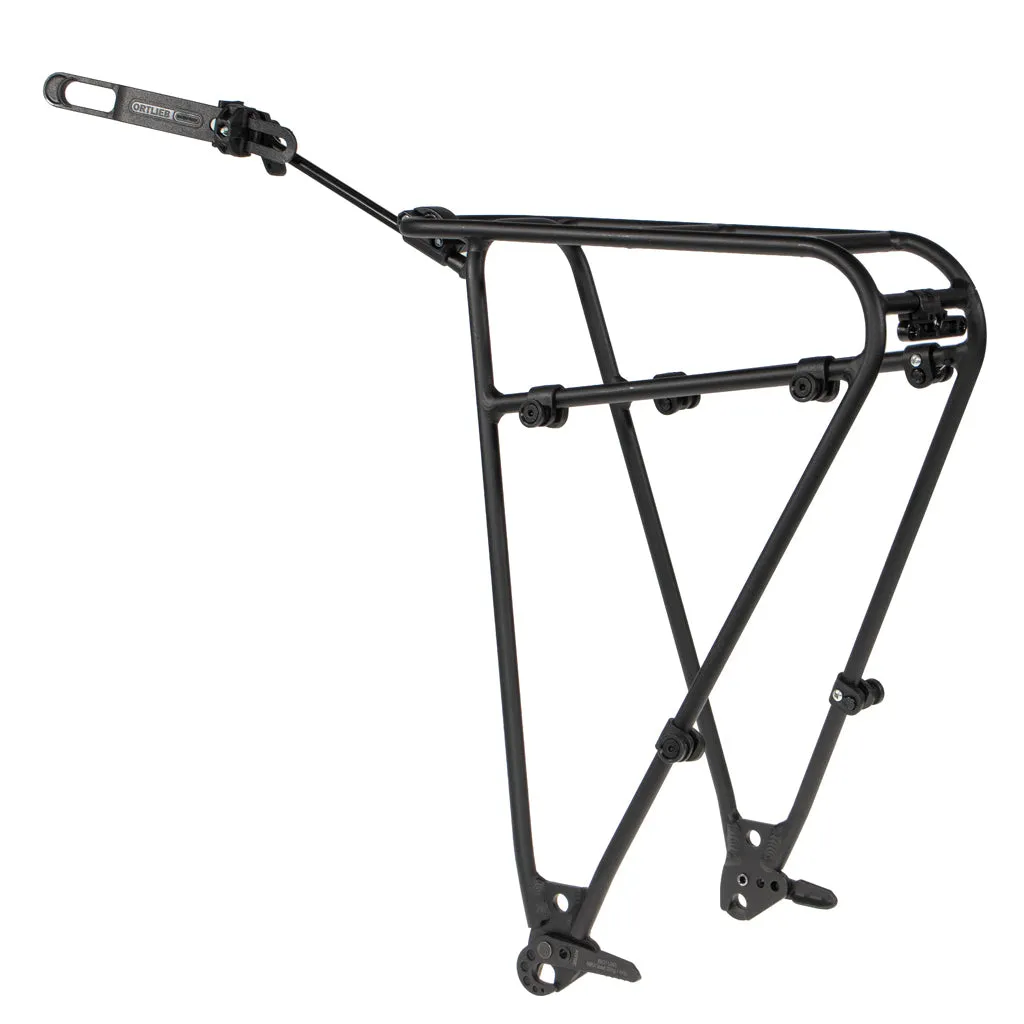

Size Large

• Maximum load capacity: 20 kg.

Luggage carrier with quick-release system for fast mounting and dismounting; allows direct attachment of bags with QL1/2/2.1/2.2 or Top-Lock system; QL3/3.1 mounting elements are included and can be additionally screwed on; suitable for bikes with a maximum tire size of 28“/50 mm when mounted via an adapter axle; horizontal and vertical struts with 10 mm tube diameter; includes mounting kit for mounting on frame luggage carrier threads; for mounting on the axle, a separately available adapter quick-release axle is necessary.

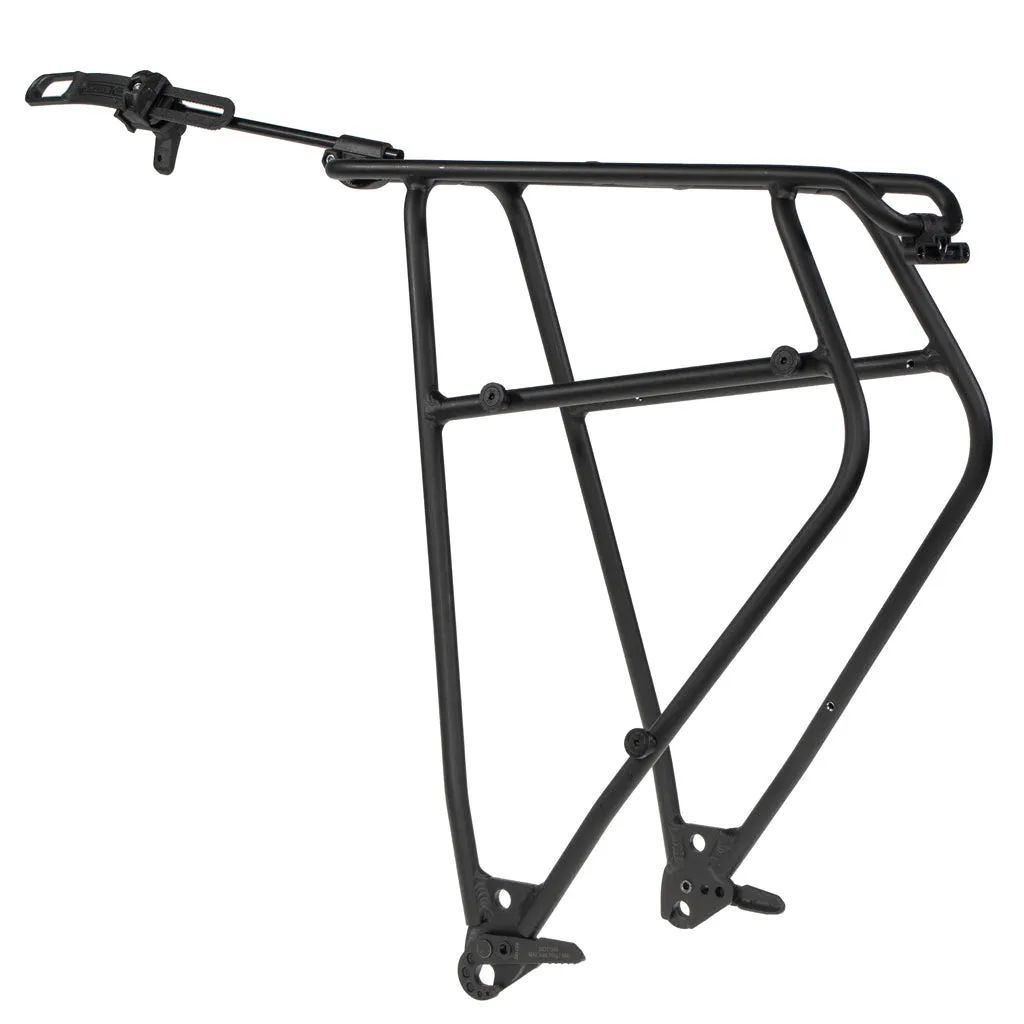

Size X-Large

• Maximum load capacity: 27 kg.

Luggage carrier with quick-release system for fast mounting and dismounting; allows direct attachment of bags with QL1/2/2.1/2.2 or Top-Lock system; QL3/3.1 mounting elements are included and can be additionally screwed on; suitable for bikes with a maximum tire size of 29“/2.6“ when mounted via an adapter axle; horizontal and vertical struts with 12 mm tube diameter; luggage carrier platform with 10 mm tube diameter; includes mounting kit for mounting on frame luggage carrier threads; for mounting on the axle, a separately available adapter quick-release axle is necessary.
